XLB30 With Side Wing Snap Connector(Presell)

Short Description:

Compared to the XT, which is made of PA6 material, its long-term operating temperature range is -20~100℃; while the XL series is made of PBT plastic shell material, its long-term operating temperature range is raised to -40~140℃, which is able to continue to work stably under the extreme temperature environment, and improves the product’s environmental adaptability.

Product Detail

Product Tags

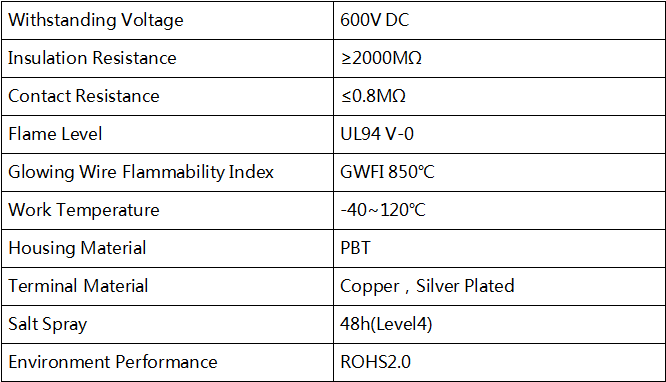

Product Parameters

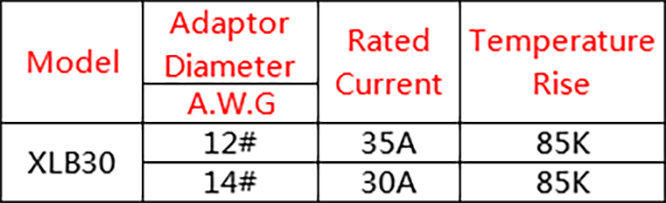

Electric Current

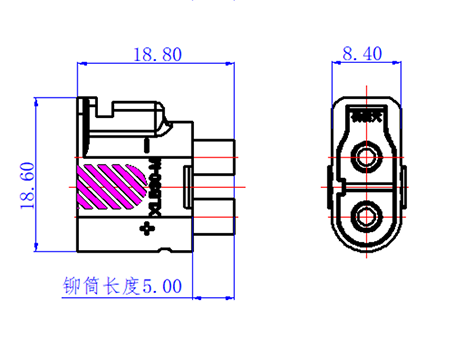

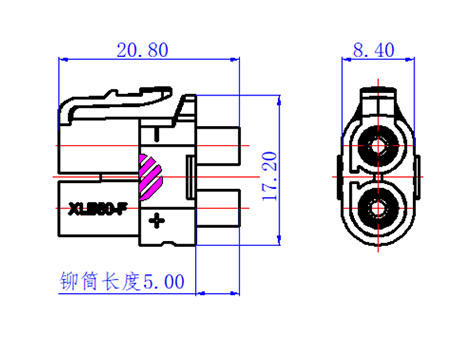

Product Drawings


Product Description

XT cross slot structure of the product, in the long-term high-frequency vibration under the contact force of the contacts will continue to decay significantly. Compared with XT, XL series adopts more reliable crown-spring contact structure, and the slotted main bar is upgraded to 12 contacts, which can effectively solve the problem of collapsing cross slot of XT inclined insertion, and has a long service life under high-frequency vibration.

Why Choose Us


The company is located in Lijia Industrial Park, Wujin District, Jiangsu Province, covering an area of 15 mu and a production area of 9000 square meters,

The land has independent property rights. So far, our company has about 250 R & D and manufacturing personnel

Manufacturing and sales teams.

Equipment strength

Equipment strength

Amass has current temperature rise test, welding resistance test, salt spray test, static resistance, insulation voltage

Testing equipment such as plug-in force test and fatigue test, and professional testing capabilities ensure the quality of products


Production line strength


Our company is equipped with injection molding workshop, welding line workshop, assembly workshop and other production workshops, and more than 100 production equipment to ensure the supply of production capacity.


Electric bicycle

Suitable for electric bicycle motor

Small size and large current, the current is continuously and stably output, and the riding is not stuck.

Electric vehicle

Applicable to lithium battery, the core component of electric vehicle

V0 class flame retardant, which plays a certain flame retardant role in the situation of lithium battery high temperature thermal runaway.

Energy storage equipment

Suitable for household energy storage, outdoor energy storage and other equipment

Red copper conductor, with strong conductivity, can ensure the continuous and stable current of the product.

Intelligent robot

Applicable to intelligent robots

The contact structure of copper parts is upgraded and the contact points are increased, which greatly improves the safety performance

Model UAV

Applicable to agricultural spraying and plant protection UAV

IP65 protection grade, dust-proof and waterproof, meeting the waterproof application of plant protection machine

Small household appliances

Applicable to battery end of wireless vacuum cleaner

High and low temperature resistance, meet the use of the battery at the charge and discharge temperature


Suitable for garden electric chain saw logging

The product is provided with snap locking function, which can resist vibration and falling off in high-frequency vibration scenarios

Transportation tools

It is suitable for balancing vehicles, balancing wheels and other transportation tools

360 ° crown spring, increased service life, high-strength vibration without instantaneous break


Q: What is your payment method?

A: Different payment terms are given according to the actual situation and the customer's situation. You can pay by bank wire transfer, bank transfer payment, etc.

Q :Can you provide samples to customers to check product quality before ordering?

A: We can provide samples to customers for recognition, but after reaching a certain amount, the samples will be charged. Please contact our sales staff for specific requirements.

Q: Can I customize connector products?

A: Yes, we can customize connector products according to your needs. For specific requirements and contents, please contact our sales personnel.
