Have you ever used a wire-to-board connector like this?

Connectors play an important role in the construction of electronic engineering to ensure the smooth circuit, so they are widely used. At present, there are many types of connectors on the market, a variety of specifications and styles, but also many excellent connection technology. And its installation methods are also diverse, installation methods are limited by the internal space and structure of intelligent devices.

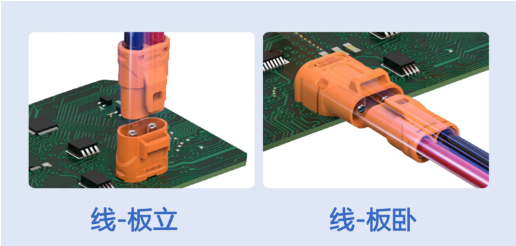

Amass LC series intelligent connector in addition to the wire and plate installation mode, there is a special installation mode, that is, the combination of wire to board installation, LC series connector combined installation has two combination installation modes: board vertical – line/board horizontal – line.

1

Embodiment of advantages

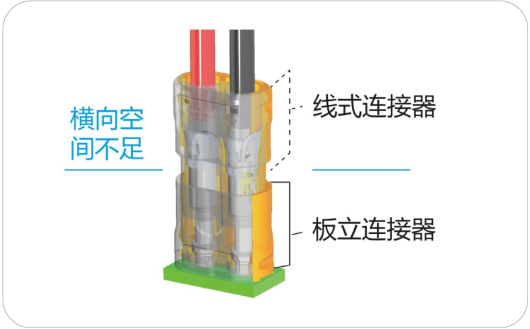

Vertical plate and line combination, suitable for the installation of intelligent devices with insufficient horizontal reserved space and abundant vertical space.

2

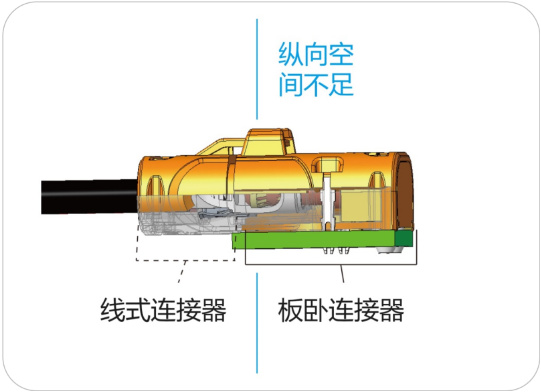

The combination of horizontal plate and cable is suitable for the installation of intelligent devices with insufficient vertical reserved space and abundant horizontal space.

3

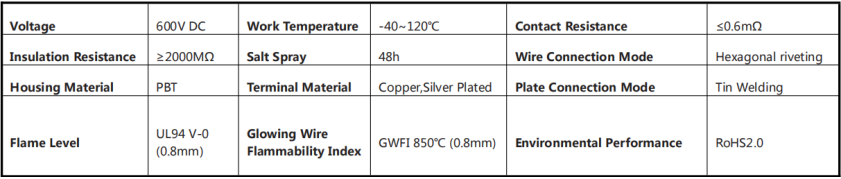

Product technical parameters:

4

It is suitable for small intelligent equipment, such as intelligent robot dogs, small household appliances, energy storage equipment and other small intelligent equipment, and it is also suitable for intelligent equipment with compact internal space and insufficient reserved connector space.

5

For details about wire-to-board connectors, see https://www.china-amass.com


Post time: Apr-13-2023
