LCC30PW High current connector

Short Description:

Amass LC series lithium battery connectors have high adaptability, high reliability and other advantages in the application of solar street lamps. Due to the outdoor service conditions and regional climate, high or low temperature is also a major factor in the test of DC terminals. Extreme high and low temperatures will damage the insulation materials, reduce the insulation resistance and withstand voltage performance, and degrade or even fail the DC terminal performance.


Product Detail

Product Tags

Product Parameters

Withstanding Voltage 600V DC
Insulation Resistance ≥2000MΩ
Contact Resistance ≤1mΩ
Flame Level UL94 V-0
Glowing wire flammability index GWFI 960℃
Work Temperature -40~120℃
Housing material PBT
Terminal material Copper,Silver plated
Salt Spray 48h(Level4)
Environmental performance RoHS2.0

Electric Current

LC30

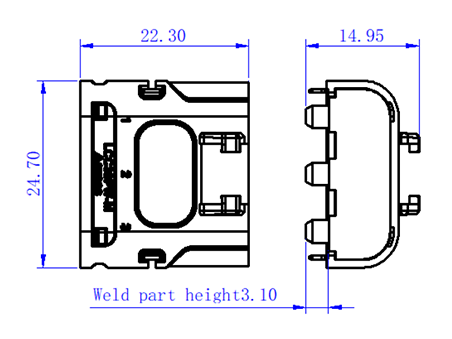

Product Drawings

LCC30PW-M -英文

Product Parameters

Amass LC series lithium battery connectors have high adaptability, high reliability and other advantages in the application of solar street lamps. Due to the outdoor service conditions and regional climate, high or low temperature is also a major factor in the test of DC terminals. Extreme high and low temperatures will damage the insulation materials, reduce the insulation resistance and withstand voltage performance, and degrade or even fail the DC terminal performance. LC series DC terminals are made of high temperature resistant material PBT, which can withstand high and low temperature environments from – 20 ℃ to 120 ℃, and can adapt to the long-term continuous and stable operation of street lamps in most temperature environments

When using the power connector, it is necessary to reasonably select the connector and its installation method. A good installation method can improve the utilization rate and service life of intelligent equipment. Amass connectors are mainly divided into solder wire connectors and solder board connectors. Among them, PCB board connectors are vertical board connectors and horizontal board connectors. Customers can choose according to the size of the connector space reserved inside the intelligent equipment. Moreover, there are diversified installation methods of wire board combination, and more than 100 types of internal applications are fully covered.

Why Choose Us

Laboratory strength

The laboratory operates based on the ISO / IEC 17025 standard, establishes four level documents, and continuously improves in the process of operation to continuously improve the laboratory management and technical capacity; And passed UL witness Laboratory Accreditation (WTDP) in January 2021

Laboratory strength

Team strength

Team-strength

The company has a professional team of technical research and development, marketing services and lean production to provide customers with a variety of high-quality and cost-effective "high current connector products and related solutions."

Honor and qualification

Honor-and-qualification-21

Amass products have passed UL, CE and ROHS certification

Applications

Electric Bicycle

Applicable to the internal core parts of lithium battery bicycles

The shell is made of PBT material, which has strong mechanical performance and is resistant to falling and abrasion.

Electric Vehicle

Applicable to electric two wheeled vehicles, tricycles and other travel equipment

Copper bar design contact, 360 ° coincidence, high current and low resistance.

Energy storage equipment

Applicable to photovoltaic energy storage inverter

It has the characteristics of small volume, large current and low resistance





Intelligent robot

It is applicable to intelligent devices such as robot dogs and distribution robots

It can maintain good electrical stability under humid and high temperature conditions

Model UAV

Applicable to police and patrol UAVs

Flame retardant shell + high current carrying conductor, double guarantee operation

Small home appliances

Applicable to intelligent sweeping robot

The size of a coin, the application scenario of limited and narrow space

Tools

Applicable to lithium battery lawnmower

Buckle design, strong vibration resistance in strong vibration environment

Transportation tools

It is applicable to motor, battery, controller and other components of walking tools

High compatibility, the same series of connectors can be used together

FAQ

Q: How did your guests find your company?
A: Promotion / brand reputation / recommended by old customers

Q: What parts are applicable to your products?
A: Our products can be used for lithium batteries, controllers, motors, chargers and other components

Q: Do your products have cost-effective advantages? What are the specific ones?
A: Save half the price, replace the standard connector, and provide customers with one-stop systematic solutions
