This paper introduces the application of Amass power signal hybrid connector on robot dog

Robot dog is a quadruped robot, which is a kind of legged robot with similar appearance to quadruped animal. It can walk independently and has biological attributes. It can walk in different geographical environments and complete a variety of complex movements. The robot dog has an internal computer that can adjust its posture according to changes in the environment. It can either follow a simple preset route by itself or be controlled remotely. The robot dog has been described as “the world’s most advanced robot adapted to rough terrain”.

With the development of technology, robot dogs have been used in a wide range of fields, from military to industrial, to family care, etc., and the interaction between robot dogs and human beings has been increasing and advancing. Robot dogs provide services in areas such as duty, search and rescue, and delivery.

In the flexible interior of the robot dog, the key component is the motor of the legs. Every joint of the robot dog’s limbs needs to be driven by the motor, and during this period, the motor needs to use the power signal hybrid connector to achieve this driving function. In practical application, the narrow and compact space inside the robot dog’s limbs and the outdoor application environment, All have put forward strict requirements for the power signal mixing plug, so what kind of power signal mixing connector can be competent?

What are the robot dog’s requirements for connectors?

Robot dog is a newly emerging model in the intelligent robot industry in recent years. At present, our products have absolute advantages in the cost performance of small volume and large current connectors, so customers in the robot dog industry temporarily choose our products.

1

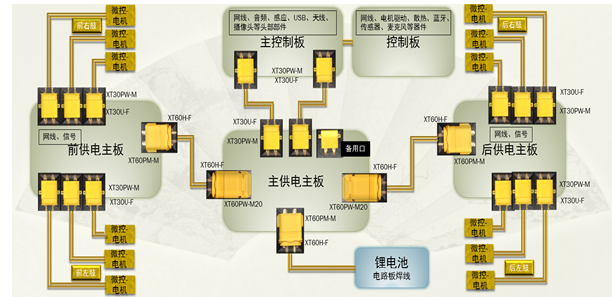

Amass power signal hybrid connector robot dog application circuit diagram

At present, customers in the robot dog industry expect the product to be improved: the product should be equipped with a locking buckle, because the robot dog somersault and other actions require the power signal mixed connector to prevent falling off. At present, customers always avoid the connector falling off through the gluing process. The fourth generation of Amass LC series products, with beam buckle design, meet the needs of the robot dog industry

2

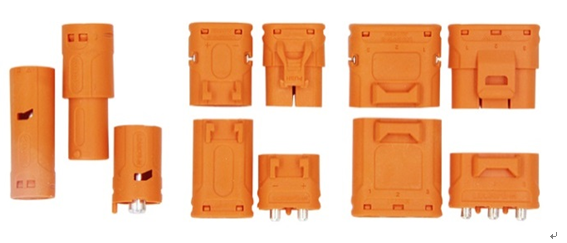

Amass LC series highlights analysis

1, small volume large current, not limited by space

At least two motors are needed to drive the robot dog to walk on each limb, which occupy a lot of space and leave little room for connectors. The connector of Amass LC series power signal hybrid plug is less than 2CM at the minimum and the size of a finger joint, which is suitable for the narrow installation space inside the robot dog.

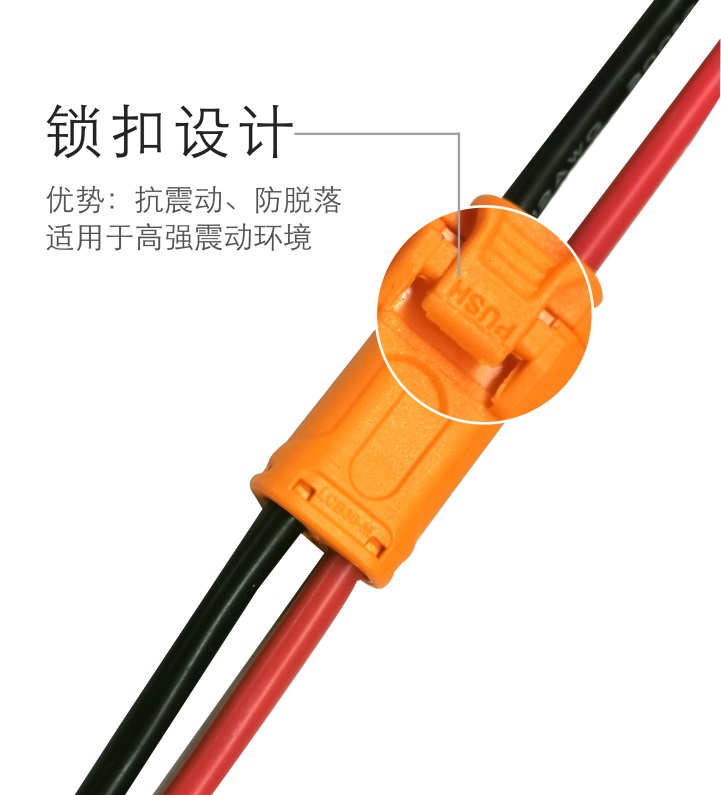

2, beam type buckle design, insert is self-locking, do not need to worry about falling off

In the process of connector production, the design of the lock is an important link. When the connector is subjected to external force, the lock can share most of the external force early, to ensure the connector anti-tripping function. When the robot dog is doing somersaults or walking on rugged mountain roads, the internal power connector is easily loosened by the external vibration environment. The beam type buckle of LC series power signal mixed connector completes the function of self-locking at the moment of insertion, which is more conducive to the use of robot dog in such application environment!

3

3, IP65 level of protection, outdoor can also be freely used

Intelligent robot dogs are suitable for patrol, detection, search and rescue, delivery and other external environment. As we all know, the outdoor environment is unpredictable, dust, rain and other external factors are easy to lead to the operation of intelligent robot dogs. Amass LC series power signal hybrid plug reaches the IP65 level of protection, effectively preventing the intrusion of water and dust entry, to ensure the normal operation of robot dogs in the outdoor.

In addition to the above advantages and highlights, LC series also has high temperature resistance, low temperature resistance, V0 flame retardant and other advantages, suitable for different intelligent mobile devices inside!
